PROTOTYPE COUNTER TERRORISM ROBOTIC SYSTEM

TACTICAL ADVANTAGE THROUGH MOBILITY AND PROTECTION

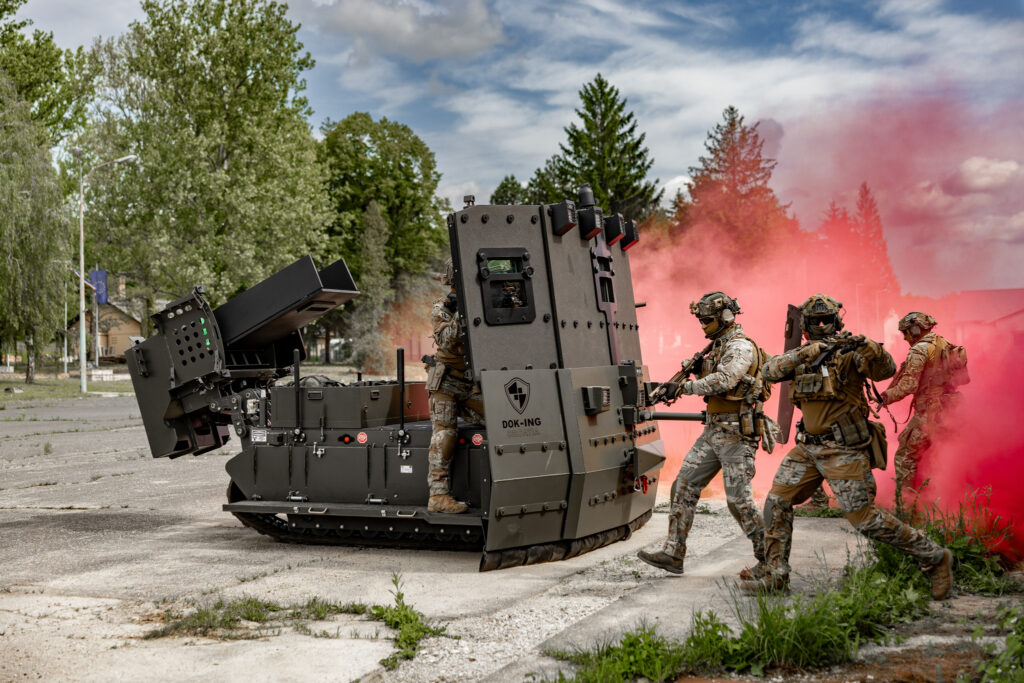

The MV-3 is a multi-mission vehicle intended for support in counterterrorism, hostage release operations and social unrest crisis missions. Counter-terrorism interventions pose significant threats to tactical teams due to limitations of personal ballistic protection. MV-3 gives the advantage of using the system with or without the tactical team, allowing flexibility and modular approach without putting tactical members in danger.



KEY FEATURES

Mission configurable platform
Selection of various mission-oriented tools

MULTI-MISSION CAPABILITY

  • Mission specific configurable
  • Transport of ballistic shields and other specialist equipment
  • CASEVAC capability

REAR EXCHANGEABLE TOOLS

  • Mobile shield carrier
  • Gripper
  • Telescopic Camera Carrier

QUICK COUPLER

  • Quick tool connection

REMOTE CONTROL CAPABILITY

  • Operational range up to 500m

OFF/ON ROAD MOBILITY

  • Tracked vehicle

BODY PROTECTION

  • Armox 500T

FRONT EXCHANGEABLE TOOLS

  • Breaching nose
  • Breaching ram
  • Breaching harpoon

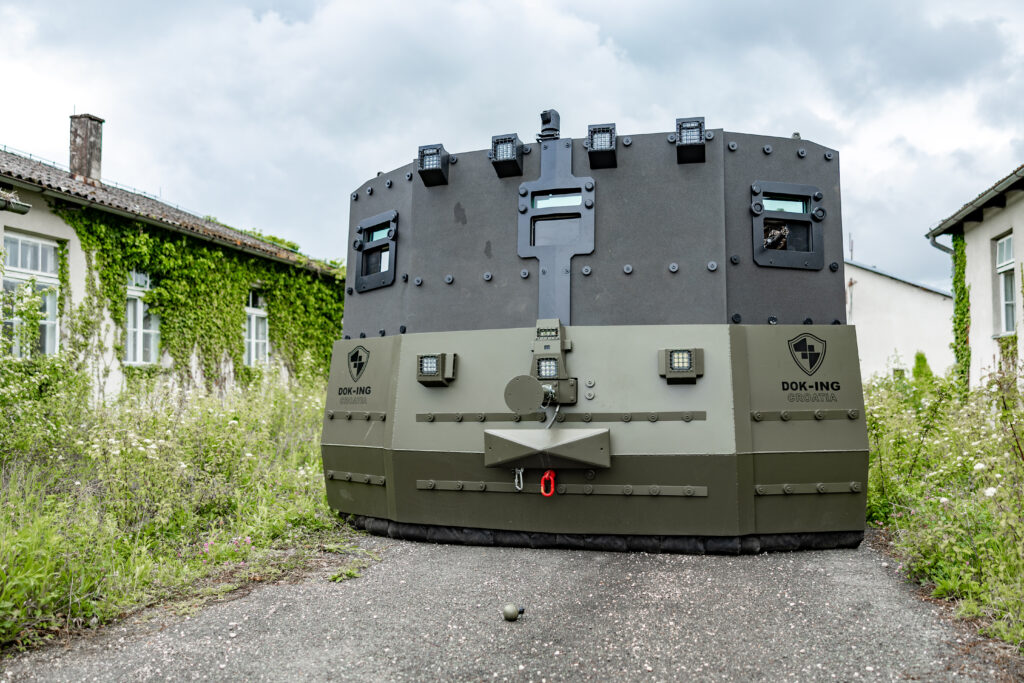

FULL FRONT BALLISTIC PROTECTION

  • NIJ4+ foldable shield

INCREASED FIREPOWER

  • Modular and scalable gun ports

DISTRACTION OF PERPETRATORS

  • Lights beams
  • Sound

SITUATIONAL AWARENESS

  • Advanced video system - 9 cameras & 2 LCD monitors
  • CBRN and Oxygen level sensors
  • Lights beams & blinders
  • Microphone and Megaphone

STORAGE BOX

  • Equipment transportation

1. SITUATIONAL AWARENESS

  • Advanced video system – 9 cameras & 2 LCD monitors
  • CBRN and Oxygen level sensors
  • Lights beams & blinders
  • Microphone and Megaphone

2. DISTRACTION OF PERPETRATORS

  • Lights beams
  • Sound

3. INCREASED FIREPOWER

  • Modular and scalable gun ports

4. FULL FRONT BALLISTIC PROTECTION

  • NIJ4+ foldable shield

5. FRONT EXCHANGEABLE TOOLS

  • Breaching nose
  • Breaching ram
  • Breaching harpoon

6. BODY PROTECTION

  • Armox 500T

7. OFF/ON ROAD MOBILITY

  • Tracked vehicle

8. QUICK COUPLER

  • Quick tool connection

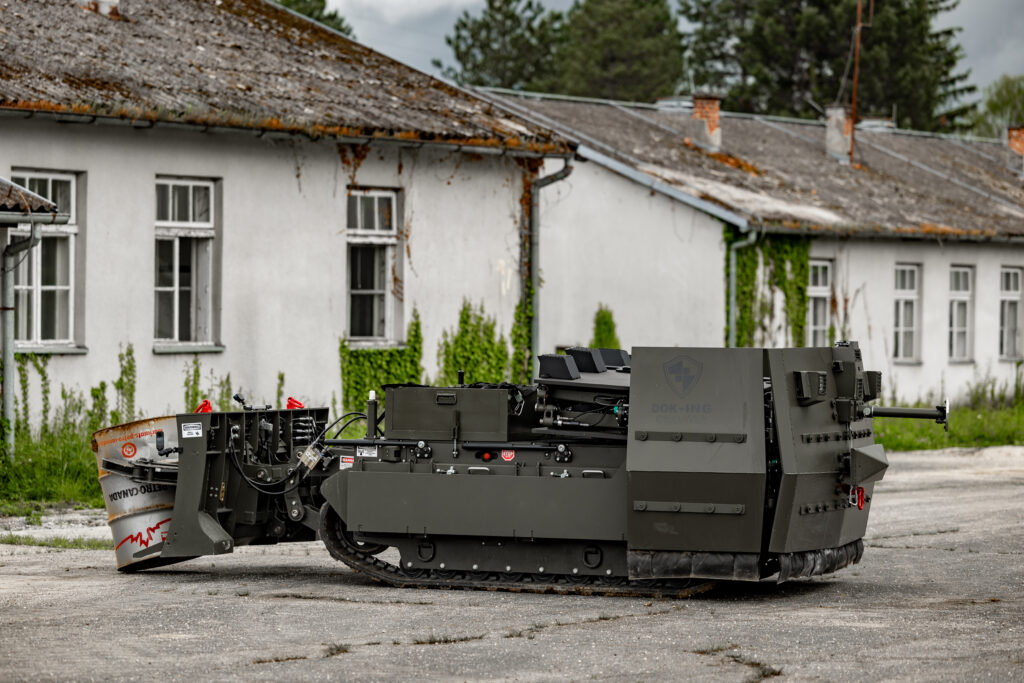

9. REAR EXCHANGEABLE TOOLS

  • Mobile shield carrier
  • Gripper
  • Telescopic Camera Carrier

10. MULTI-MISSION CAPABILITY

  • Mission specific configurable
  • Transport of ballistic shields and other specialist equipment
  • CASEVAC capability

11. REMOTE CONTROL CAPABILITY

  • Operational range up to 500m

12. STORAGE BOX

  • Equipment transportation

APPLICATIONS

Possible Tactical Utility without Tactical Team

Breaching and Dynamic Entry

Activities in EOD and CBRN Threat Areas

Full Situational Awareness (video, audio, detection, etc.)

Transport and Equipment Delivery

Possible Tactical Utility with Tactical Team

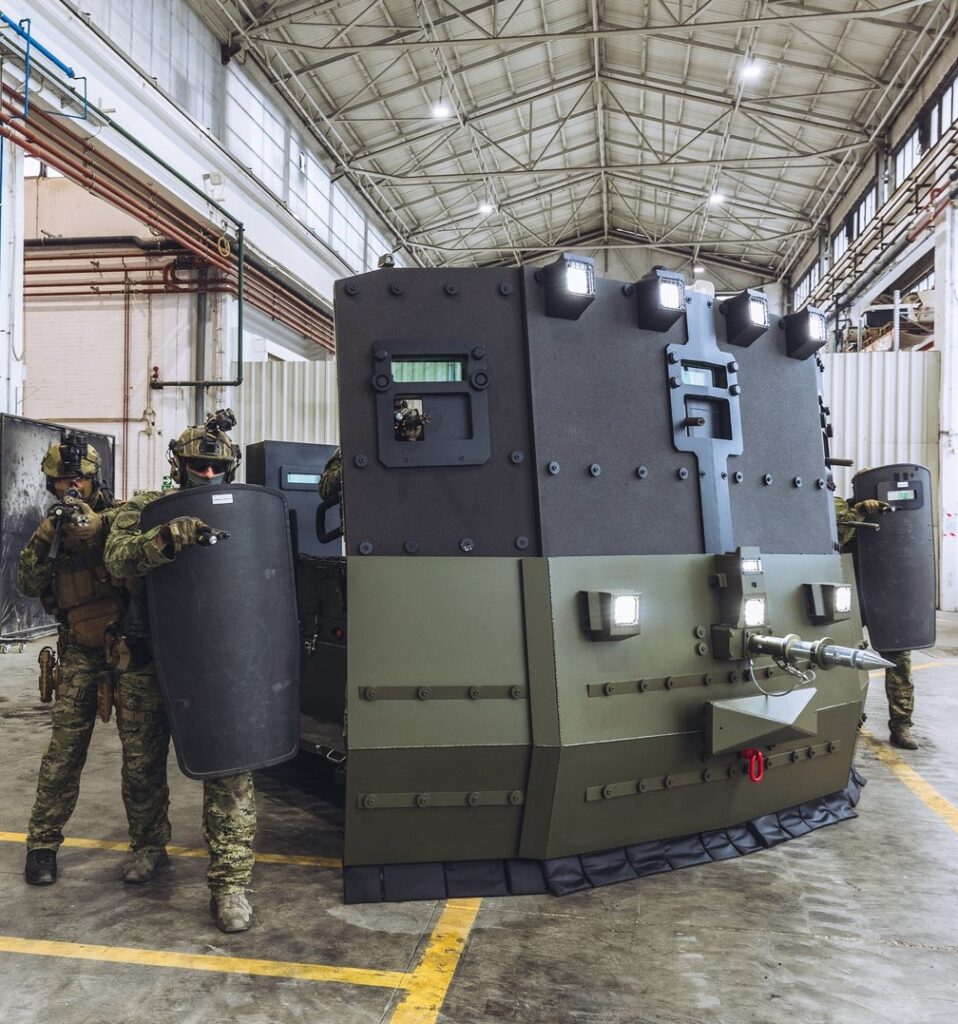

Ballistic Protection of Tactical Teams

Increased Fire Power

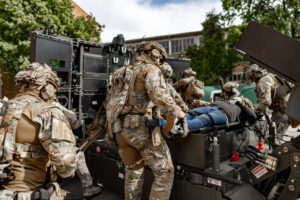

CASEVAC (Casualty Evacuation) Capability

Transport of Ballistic Shields and Other Specialist Equipment

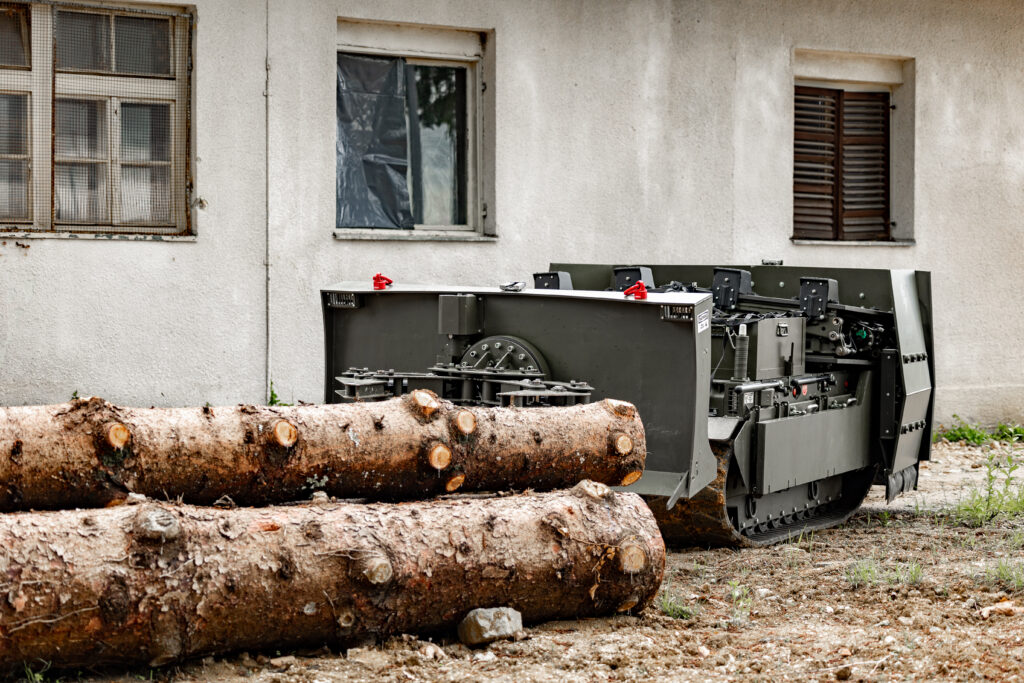

Obstacle Clearance and Removal of Suspicious and Dangerous Objects

Dynamic Entry and Clearance

Situational Awareness (detection, video, audio, etc.)

Mobile Ballistic Shield Carrier

Purpose: Transport of mobile ballistic shields

Camera Pole

Purpose: Recconaissance behind obstacles

Universal Telescopic Mast

Purpose: Surveillance, monitoring, signal extension

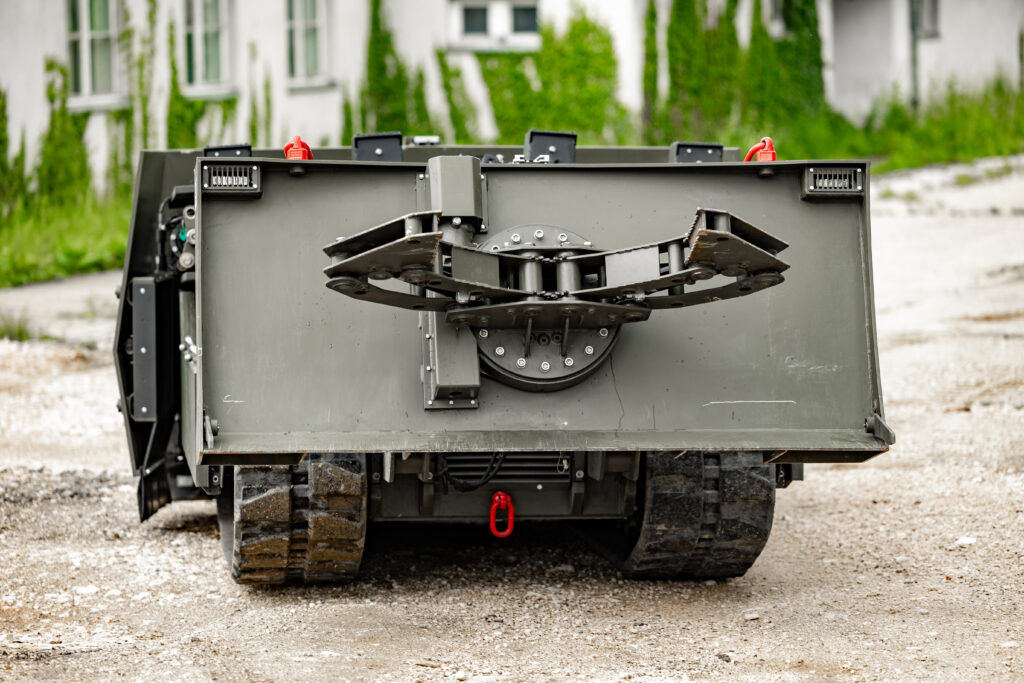

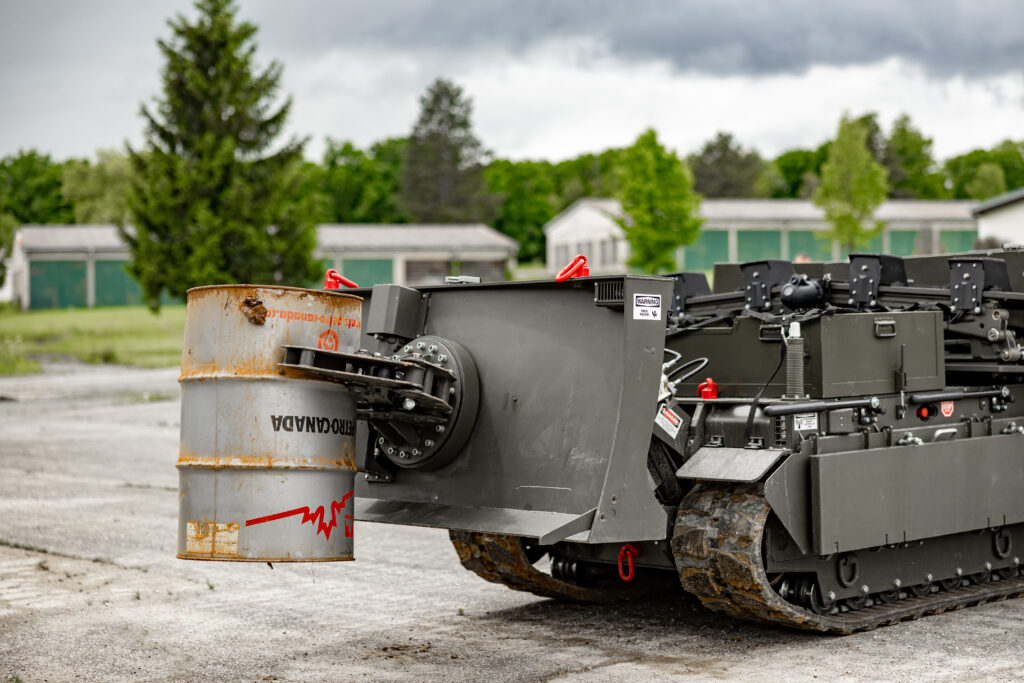

Gripper

Purpose: Lifting and removing objects

Harpoon

Purpose: Penetration and tactical pul

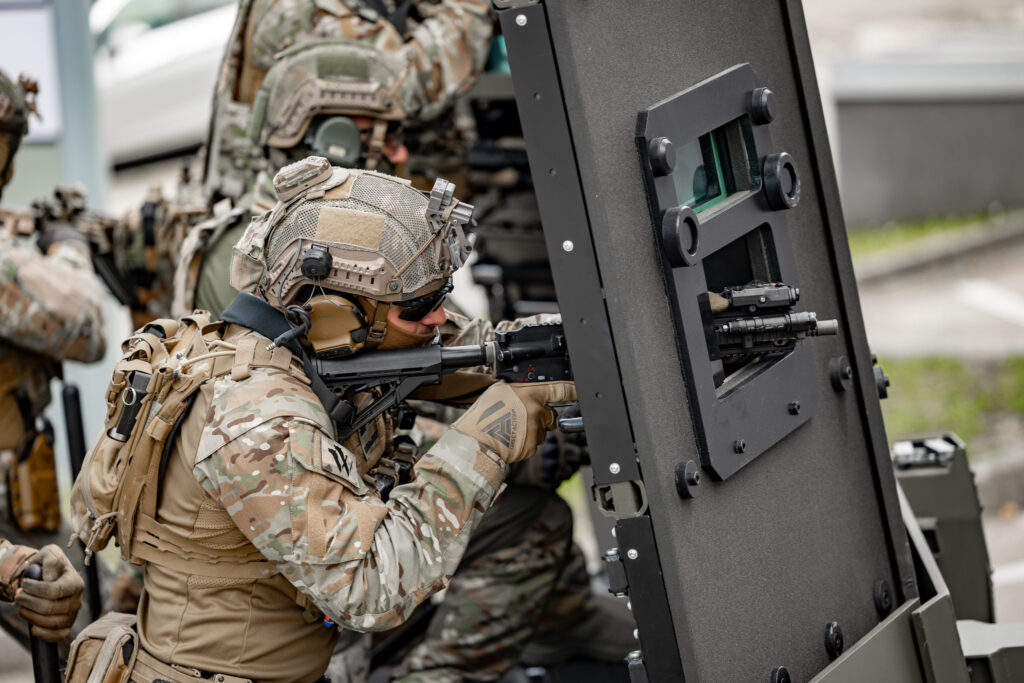

Ballistic Shield NIJ IV

Purpose: Full front ballistic protection of tactical team

Ram

Purpose: Penetration and tactical in break

LOGISTICS

The MV-3 can be easily moved by different means of transportation.

Water – A standard 20’ container is ideal for delivery by sea.

Land – Road transportable with standard trailer.

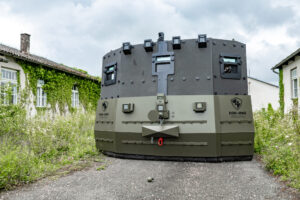

GALLERY

TECHNICAL DATA

Dimensional data*
Length 4700 mm
Width 2500 mm
Height 3450 mm
Weight 6800 kg
Operational Speed 8 km/h
Protection level of the ballistic shiled NIJ 0101.06 Type IV
Track Width 400 mm
Ground Pressure 0,5 kg/cm2
Ground Clearance 225 mm
Battery pack capacity 36 kWh

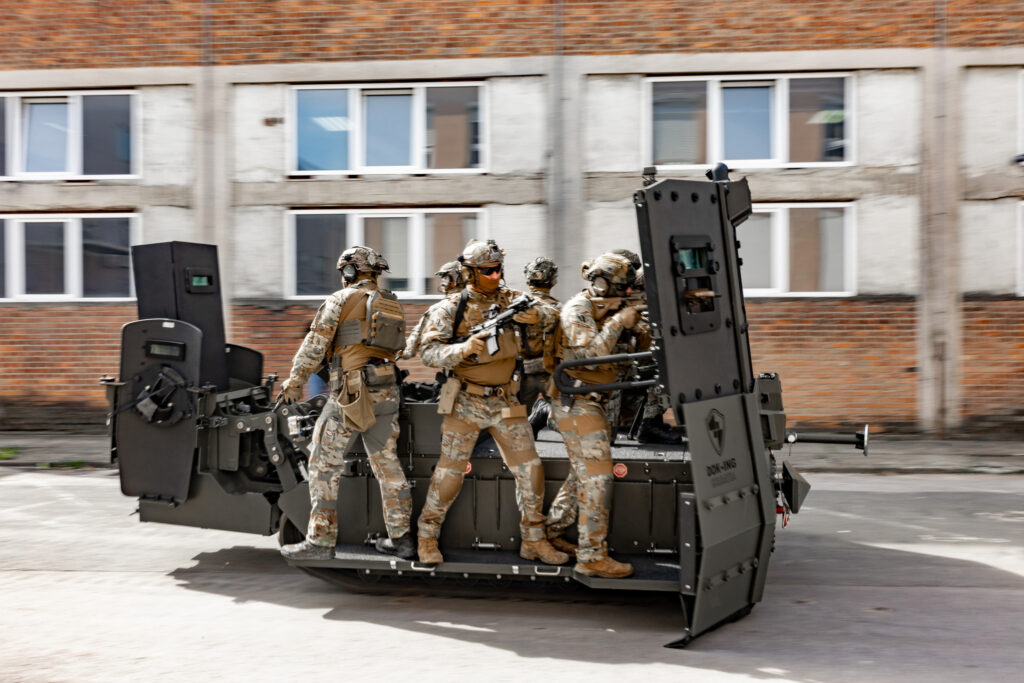

People carrying capacity 8 people
Payload 700 kg
Storage box dimension (inside) 160 cm x 84 cm x 28.5 cm

All technical characteristics are provided for informational purposes only and DOK-ING Ltd. reserves the right to make changes without notice.

* Standard configuration with detachable mobile shield and front foldable shield in open state
