Adaptable. Fast-acting. Indestructible.

MULTI MISSION EOD ROBOTIC SYSTEM

ROBUST AND COMBAT PROVEN

The MV-4 is one of the world’s best renowned light category mine clearance and EOD robotic systems. Its low profile and robust structure makes it resistant to all AP mines detonations and UXOs of similar intensity. It can also sustains AT mine explosions. MV-4 is the only mine clearance and EOD robotic system in its category that has proved its efficiency in real combat environment.

KEY FEATURES

Mission-oriented engineering platform
Prime mover and various exchangeable tools

DAY/NIGHT OPERATION

  • Lights
  • Low light cameras
  • IR light

REMOTE CONTROL CAPABILITY

  • Operational range up to 1500m

MULTI-MISSION CAPABILITY

  • Rear exchangeable tools

AIR AND ROAD TRANSPORTABLE

  • Sling load capable
  • Tie down points

FULL BODY PROTECTION

  • Hardox 450

SITUATIONAL AWARENESS

  • Advanced video system

OFF/ON ROAD MOBILITY

  • Deep profile tracks
  • Rubber pads

SELF-RECOVERY CAPABILITY

  • Extension arms
  • Winch

EXTENDED EOD CAPABILITIES

  • Manipulation
  • Interrogation
  • Cutting
  • Device Defeat

FAST TOOL EXCHANGE

  • Optional Quick coupler

MULTI-MISSION CAPABILITY

  • Front exchangeable tools

1. EXTENDED EOD CAPABILITIES

  • Manipulation
  • Interrogation
  • Cutting
  • Device Defeat

2. FAST TOOL EXCHANGE

  • Optional Quick coupler

3. MULTI-MISSION CAPABILITY

  • Front exchangeable tools

4. SELF-RECOVERY CAPABILITY

  • Extension arms
  • Winch

5. OFF/ON ROAD MOBILITY

  • Deep profile tracks
  • Rubber pads

6. SITUATIONAL AWARENESS

  • Advanced video system

7. FULL BODY PROTECTION

  • Hardox 450

8. AIR AND ROAD TRANSPORTABLE

  • Sling load capable
  • Tie down points

9. MULTI-MISSION CAPABILITY

  • Rear exchangeable tools

10. REMOTE CONTROL CAPABILITY

  • Operational range up to 1500m

11. DAY/NIGHT OPERATION

  • Lights
  • Low light cameras
  • IR light

APPLICATIONS

Mechanical Ground Preparation & Demining

Flail

Purpose: Area/mine clearance, neutralization of AP landmines and UXOs
Clearance width: Up to 1800 mm
Clearance depth: Up to 300 mm

Tiller

Purpose: Area/mine clearance, neutralization of AP landmines and UXOs
Clearance width: 1800 mm
Clearance depth: Up to 350 mm

Mechanical Technical Survey & Clearance

Flail

Purpose: Area/mine clearance, neutralization of AP landmines and UXOs
Clearance width: Up to 1800 mm
Clearance depth: Up to 300 mm

Tiller

Purpose: Area/mine clearance, neutralization of AP landmines and UXOs
Clearance width: 1800 mm
Clearance depth: Up to 350 mm

Deep Interrogation Tasks

EOD Arm

Purpose: Handling dangerous objects, deep interrogation, digging, cutting
Lifting capacity: 400 kg
Length: Up to 5,4 kg

Mobility / Counter Mobility

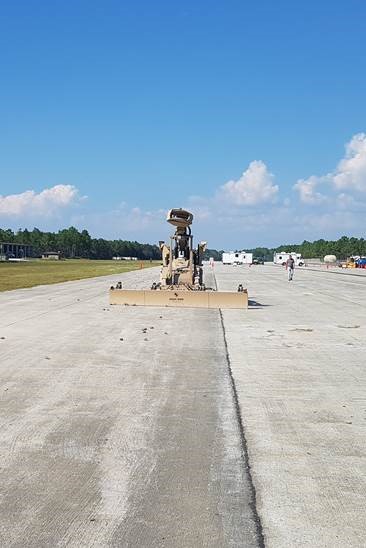

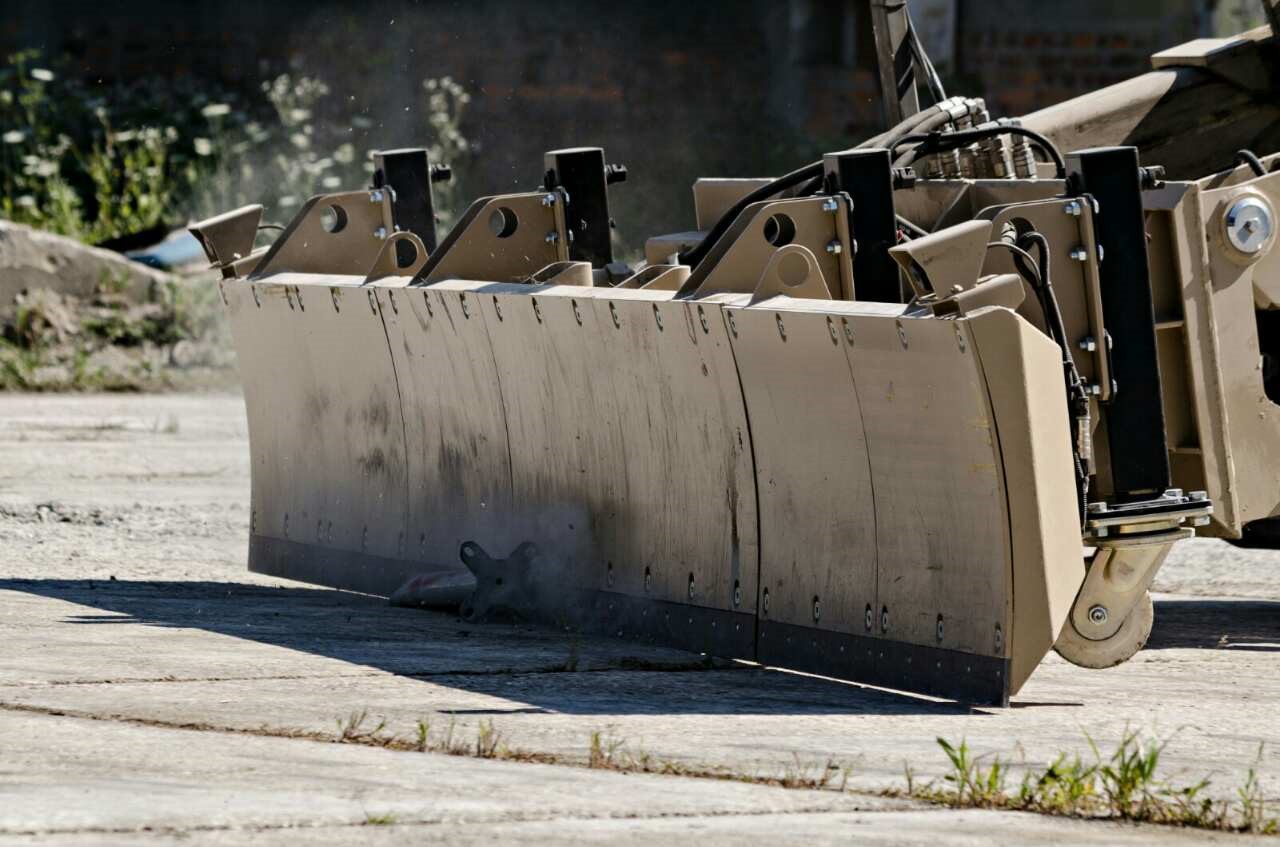

Dozer Blade

Purpose: Earth moving, breaching, mobile cover
Pushing capacity: 4 t

EOD Arm

Purpose: Handling dangerous objects, deep interrogation, digging, cutting
Lifting capacity: 400 kg
Length: Up to 5,4 m

Rotational Gripper

Purpose: Breaching, removal of obstacles, earth moving, pushing
Lifting capacity: 1500 kg
Pushing capacity: 5,5 t

Segmented Roller

Purpose: Path/area verification
Numbers of rollers: 12
Clearing width: 2070 mm

Reconnaissance & Surveillance Tasks

Video system

Digging Tasks

Dozer Blade

Purpose: Earth moving, breaching, mobile cover
Pushing capacity: 4 t

EOD Arm

Purpose: Handling dangerous objects, deep interrogation, digging, cutting
Lifting capacity: 400 kg
Length: Up to 5,4 m

Route Clearance

EOD Arm

Purpose: Handling dangerous objects, deep interrogation, digging, cutting
Lifting capacity: 400 kg
Length: Up to 5,4 m

Rotational Gripper

Purpose: Breaching, removal of obstacles, earth moving, pushing
Lifting capacity: 1500 kg
Pushing capacity: 5,5 t

Segmented Roller

Purpose: Path/area verification
Numbers of rollers: 12
Clearing width: 2070 mm

Breaching Tasks

Rotational Gripper

Purpose: Breaching, removal of obstacles, earth moving, pushing
Lifting capacity: 1500 kg
Pushing capacity: 5,5 t

EOD Tasks in C-IED

EOD Arm

Purpose: Handling dangerous objects, deep interrogation, digging, cutting
Lifting capacity: 400 kg
Length: Up to 5,4 m

General C-IED Tasks

Dozer Blade

Purpose: Earth moving, breaching, mobile cover
Pushing capacity: 4 t

Rotational Gripper

Purpose: Breaching, removal of obstacles, earth moving, pushing
Lifting capacity: 1500 kg
Pushing capacity: 5,5 t

EOD Arm

Purpose: Handling dangerous objects, deep interrogation, digging, cutting
Lifting capacity: 400 kg
Length: Up to 5,4 m

LOGISTICS

The MV-4 can be easily moved by different means of transportation in a simple and inexpensive way and without need for special permits or escort.

Air Delivery by airplane inside cargo compartment or with rotary wing by use of lifting points

Water – A standard 20’ GP container is ideal for delivery by sea

Land – Delivery by an ordinary truck, car hauler trailer or tractor-trailer

GALLERY

TECHNICAL DATA

Dimensional data
Length (excl. attachment) 4635 mm
Width (excl. attachment) 2030 mm
Height 1740 mm
Weight (excl. attachment) ~6120 kg
Engine type Perkins
Engine power 186 kW / 250 HP
Engine torque 1050 Nm @ 1400 rpm
Fuel consumption 15 - 25 l/h
Demining capacity Up to 1400 - 1800 m²/h
Ground pressure 0,59 kg/cm²
Transport speed 7,15 km/h
Operational speed 0,5 - 1,26 km/h
Longitudinal gradeability** 36°
Side slope capability** 30°
Fording depth 300 mm

All technical characteristics are provided for informational purposes only and DOK-ING Ltd. reserves the right to make changes without notice.
